125 Roller Shutter Guide Making Machine 14 Steps Automatic PLC

Product Categories
Liming Stamping Form Machine Co.,Ltd
Contact Now

125 Roller Shutter Guide Making Machine 14 Steps Automatic PLC

Brand Name : LIMING

Model Number : LM-RSD15

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Productivity : shutter as the drawing

After-sales Service Provided : Online support, Free spare parts, Field installation, commissioning

Material specification : Aluminum, galvalume, galvanized and pre-painted galvanized steel.

Number of forming steps : 14 steps

Equipment operation : automatically plc

Thickness : 0.8-1.2 mm

Hydraulic motor power(KW) : 5.5

Material of shafts : 45# steel adjustable treatment. Outer diameter 42 mm

Forming roller station : 12 Stations

Contact Now

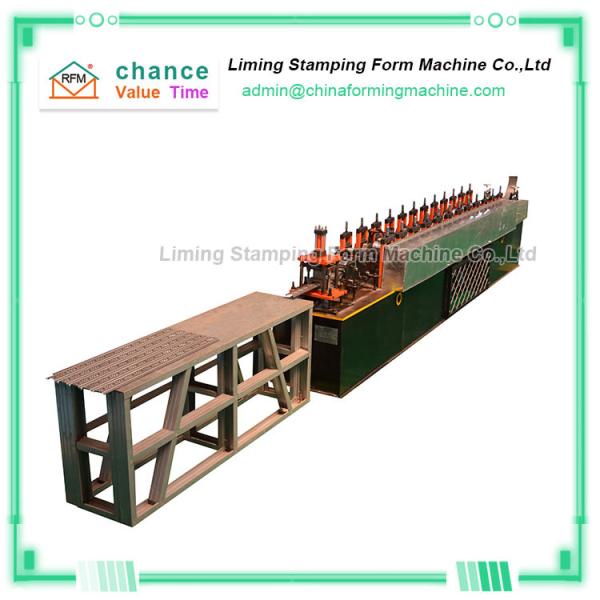

125 Roller Flower Rolling Shutter Roll Forming Machine

The 125 roller flower rolling shutter roll forming machine uses copra software to determine the number of forming rollers according to the product drawings.

The 125 roller flower rolling shutter roll forming machine adopts advanced hydraulic drive, without a separate punching device, and automatically cuts after molding, without deformation, no waste, and high safety factor.

The service of 125 roller flower rolling shutter roll forming machine, 24 hours service, you are welcome to visit and inquire at any time,No matter where you are, LIMING has the experience, knowledge and skills to meet your needs and requirements.

Technical Parameters Of 125 Roller Flower Rolling Shutter Roll Forming Machine

Main forming machine
Number of forming steps 14 steps
Material of shafts 45# steel adjustable treatment. Outer diameter 42 mm
Material of rollers 45#steel, plating hard chrome on the surface, rigidity HR55°-57°
Main motor power 3 kw
The speed of forming 8m/min
Thickness of the steel 0.8-1.2 mm
Dimension of the machine 4500*800*1000mm
Weight of the machine 2000kg
The electrical control system
Display textscr
The main computer (PLC) Tai Da DVP14ES
Hydraulic system
Power 3KW

125 Roller Shutter Guide Making Machine 14 Steps Automatic PLC
